本機器特色
1.采用陶瓷網紋輥傳墨。
2.各印刷單元采用360周向?qū)Π嬲{(diào)節
3.隨機配有三組模切工位，第一、第二組模切工位的模切輥和模切低輥可上、下互換，可作正面或反面模切并配有一組廢料回卷單元，第三組模切工位可斷張。
4.電腦糾偏裝置設在印刷組前面，這樣的設計令卷紙?jiān)谡麄€(gè)生產過程中，都保持在正確的左右位置上。(標配)
5.可按用戶需求選配切斷張的輸送臺裝置，由第三組模切工位斷張后，使產品整齊輸送出來。
6、放卷、收卷由磁粉自動漲力控制，并可加裝雙收卷
7.可按照用戶需求選裝靜止畫面監控系統，在高速印刷時監控圖面質量。
8.停車時墨輥可自動脫離，并低速運轉，以防水墨干結，
9.主電機采用進口變頻無級調速。
10.從筒料供紙、印刷、上光、自動關紅外烘干、覆膜、收卷或切張一次完成，是各類印刷廠印刷商業票據、高檔不干膠最理想的機型，
11.全自動電腦套色，獨立雙收放料架(雙氣脹軸)。
12.自動退版裝置，斷張+輸送平臺+理紙裝置，靜止畫面。
Product Overview
This machine characteristics
1.Using ceramic roller to transfer the ink.
2.Each printing unit adopt 360 for registration.
3. Equipped with three die cutting stations, the first and second die cuttingstation of the die cutting roller and die cutting low roller can beinterchanged, can be used for front or back die cutting and is equippedwith waste rewinding unit, the third station is sheeting.
4. The computer web guiding is located in front of the printing group, sothat the roll paper is kept in the correct left and right position throughoutthe production process.(standard).
5. Can be selected according to user needs to install the conveyor tabledevice, can be transported neatly by the conveyor table device.
6, the unwinding, rewinding is controlled by magnetic powder and can beinstalled double rewinding.
7. video monitor is optional for the customers to monitor the quality of thepicture during high-speed printing.
8. When stopping, the ink roller can be automatically disengaged and runat low speed to prevent dryink.
9.The main motor adoptsimported frequency stepless speed adjust.
10.Unwinding, printing, varnishing, lR drying, laminating and rewindingcan be finished in one process, this kind of printing machine is best for eachprinting companies to print on adhesive-paper labels and othercommerciallabel.
11.Automatic computer registration ,independent double retracting anddischarging rack(double airshafts).
12. Automatic return the printing roller device, sheeting ,conveyingplatform+ paperarrangement device,video monitor.

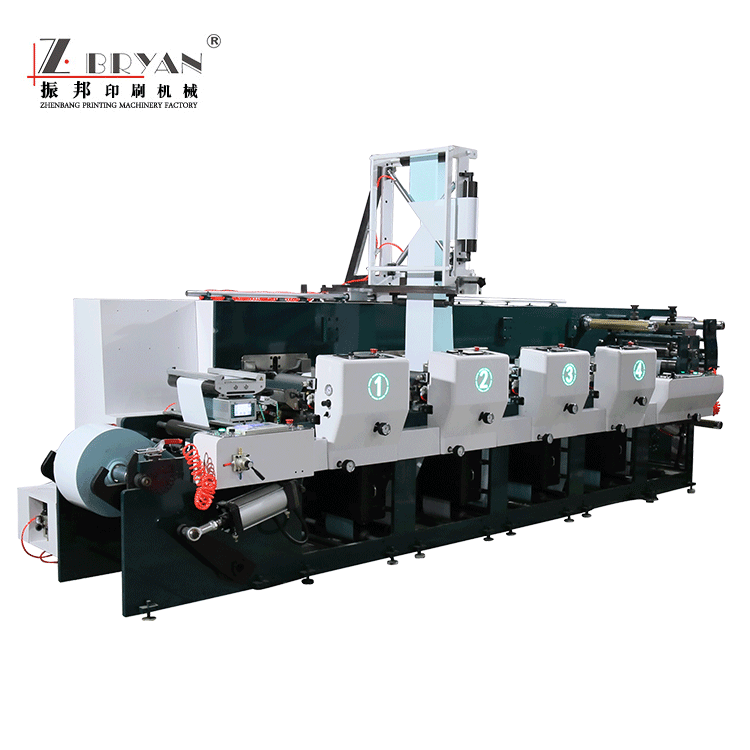

ZB-350/450機組式標簽印刷機
